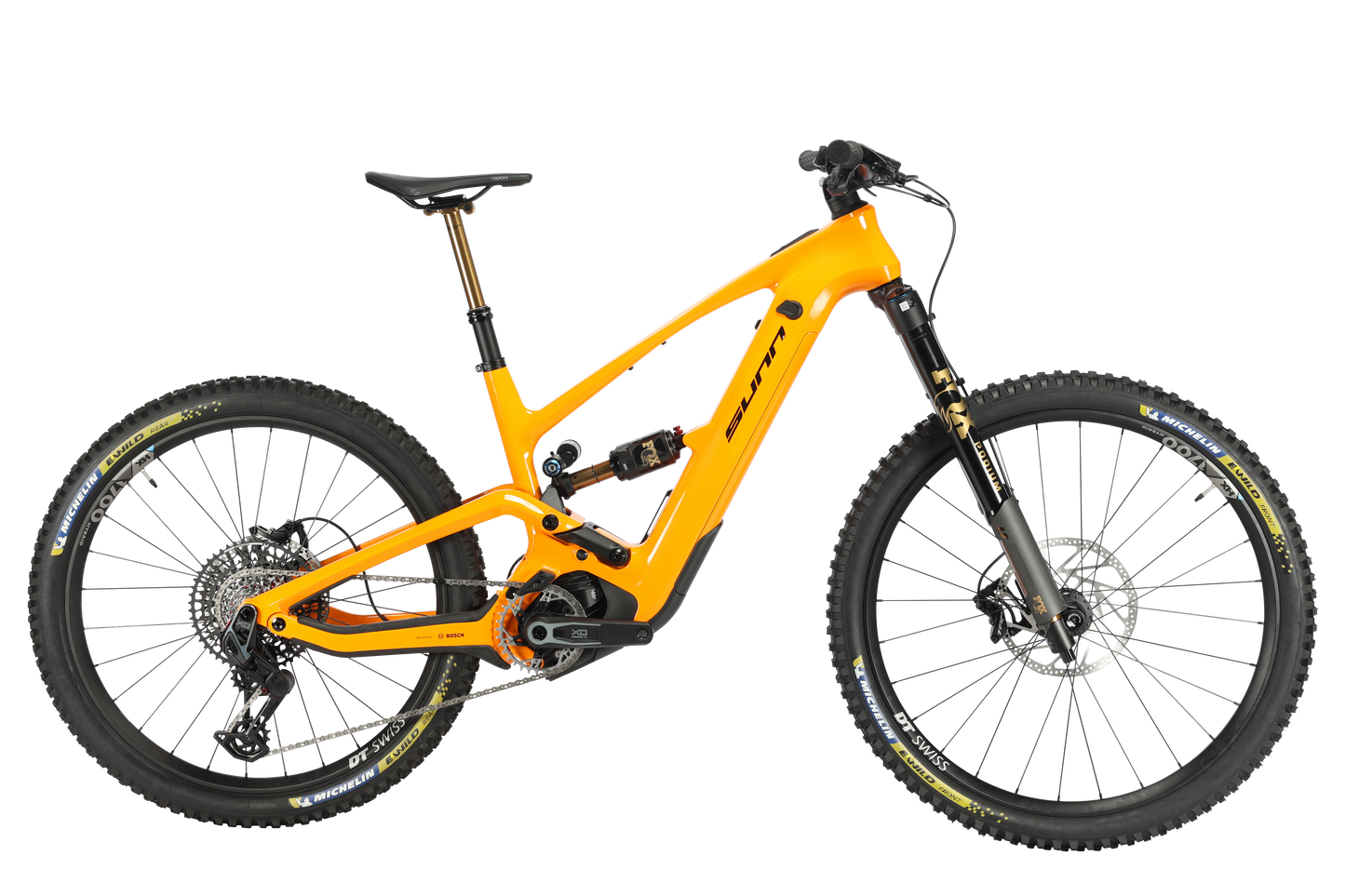

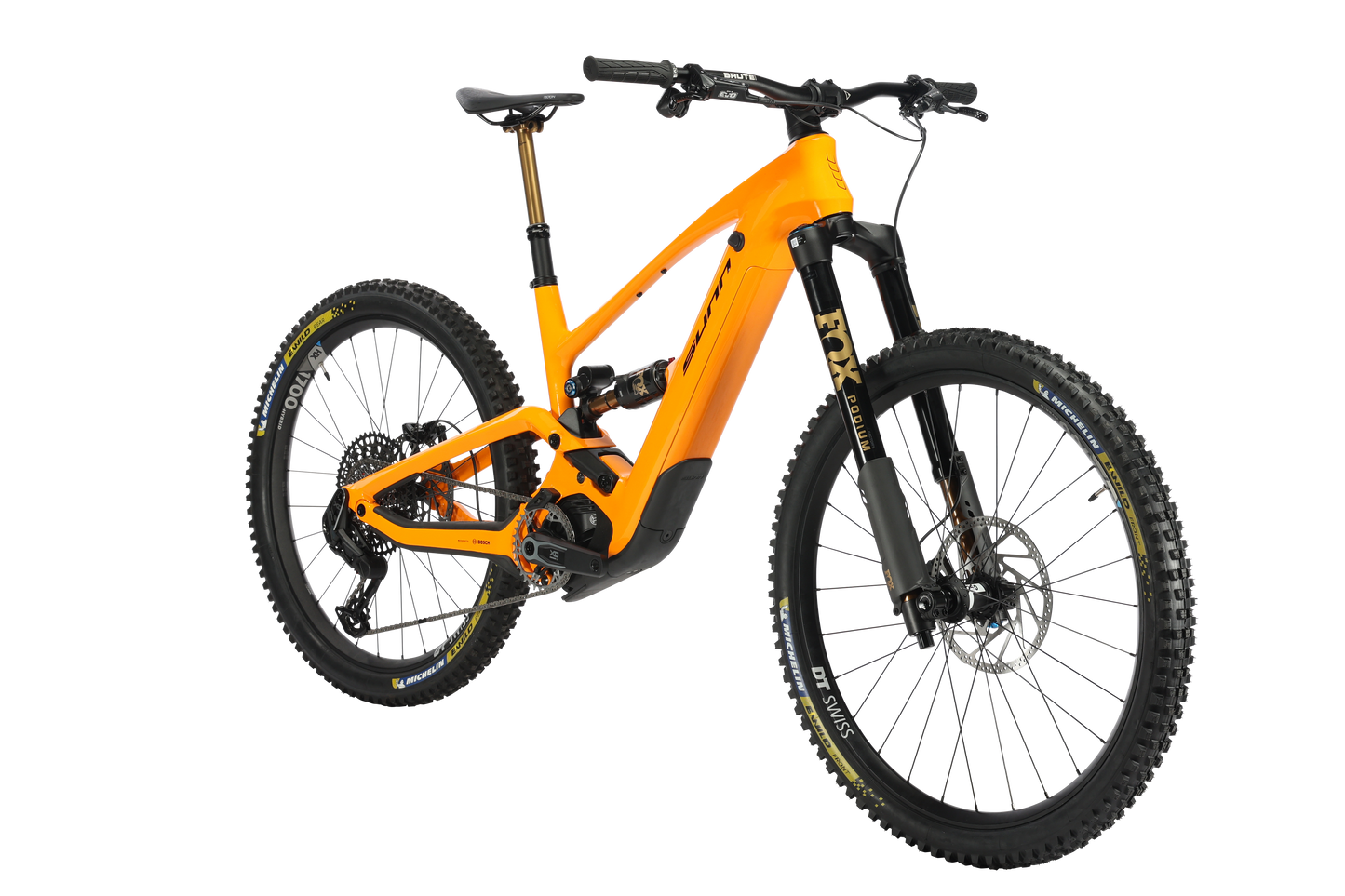

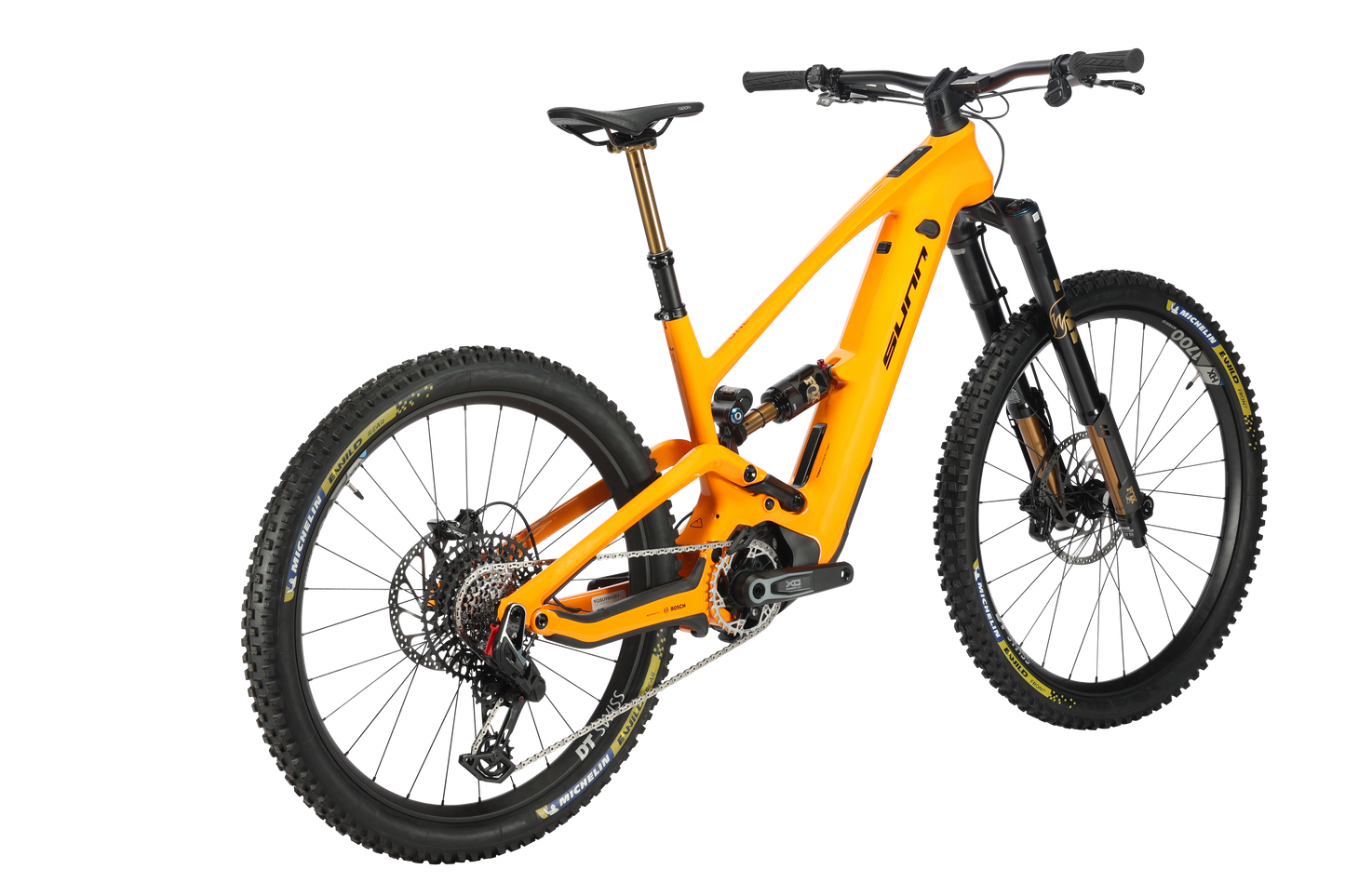

MY25 One Factory
After three years of development and countless prototypes exploring different geometries, kinematics, motor systems, and carbon fiber compositions — the ONE has finally arrived. Crafted by one of the world’s foremost carbon fiber specialists, its frame construction rivals the precision and artistry of haute couture.
Made from the same high-performance Toray fibers used in the aerospace industry, every layer is meticulously oriented to deliver maximum strength and reliability while achieving the ideal balance of weight, stiffness, and tolerance. The result: a chassis that embodies pure engineering excellence.
⚙️ Specifications
🧱 Frame
-
Frame: Full Carbon Toray E-Enduro, Integrated Boost, 160 mm
🪂 Suspension
-
Fork: FOX 38 Float Factory Kashima, 170 mm, Boost, Tapered
-
Travel: 170 / 160 mm (S: 160 / 160 mm)
-
Shock Absorber: FOX Float X2 Factory Kashima 230 × 65 mm
⚡ Motorization
-
Engine: New Bosch Performance Line CX Smart System — Torque: 85 Nm / Max Power: 600 W / Compatible with 100 Nm via the eBike Flow app
-
Battery: Bosch PowerTube 800
-
Display: Bosch Purion 400
🚴 Transmission
-
Rear Derailleur: SRAM X0 AXS Eagle T-Type 12-Speed AR
-
Crankset: SRAM X0 Eagle 160 mm / SRAM X-Sync XX Eagle T-Type 34T
-
Cassette: SRAM XS1275 Eagle T-Type 12-Speed, 10–52
🛑 Brakes
-
Brakes: TRP DH EVO — 220 / 203 mm rotors
🛞 Wheels
-
Wheel Size: 27.5" / 29"
-
Rims: DT Swiss HX1700 Spline Tubeless
-
Hubs: Boost, Thru Axle
-
Tires: Michelin E-Wild Racing Line 29 × 2.4 / Michelin E-Wild Racing Line 27.5 × 2.6 TLR
🧩 Components
-
Handlebar: Brute One Alloy 780 mm × 31.8 — Rise 25
-
Stem: 3D Forged Alloy, Integrated 31.8 × 45 mm
-
Seatpost: FOX Transfer Factory Kashima — 150 mm (S) / 180 mm (M) / 210 mm (L)
-
Saddle: Fizik Terra Aidon X5
⚖️ Weight
-
Total Weight: 24.2 kg
📄 Documentation
-
SUNN E-MTB Instructions
-
Bosch CX Engine Manual
-
Bosch PowerTube 800 Battery
-
Bosch Purion 400
-
YGSUV9 Certificate
📐 Geometry
| Specification | S | M | L |
|---|---|---|---|
| Seat Tube Height (ST) | 360 | 410 | 460 |
| Top Tube Length (TT) | 574 | 601 | 629 |
| Wheelbase (WB) | 1221 | 1250 | 1280 |
| Head Angle (HA) | 64° | 64° | 64° |
| Seat Tube Angle (SA) | 77.5° | 77.5° | 77.5° |
| Chainstay Length (RC) | 445 | 445 | 445 |
| Bottom Bracket Height (BB) | -28 | -28 | -28 |
| Head Tube Length (HT) | 100 | 110 | 120 |
| Reach (mm) | 435 | 460 | 485 |
| Stack (mm) | 628 | 637 | 646 |
📏 Size Guide
Rider Height Recommended Size Fit
158 cm - 170cm Size S
168 cm - 180cm Size M
178 cm - 188cm Size L
- Regular price
- $16,210.00
- Sale price
- $16,210.00
- Regular price
-
To reach the summits without having to depend on ski lifts and then push your limits when the slope reverses, here is the ONE. Our first carbon Enduro e-MTB. Powerful, efficient, tolerant and balanced, the ONE is the ideal mount whether you are a racer or a fan of long mountain rides.
Carbon.
After 3 years of development and several prototypes with different geometries, kinematics, motorizations and carbon fibers, here is finally the ONE. Entrusted to one of the greatest specialists in carbon fiber, the manufacturing of the frame has nothing to envy of haute couture!
Constructed from the highest-performance fibers from the aeronautical industry, each layer of fiber was laid in a specific direction to provide the required reliability while optimizing the weight and tolerance we wanted to achieve on the ONE chassis..
Bosch.
The ONE is equipped with the latest generation, further optimized, of Bosch motorization.
Powerful, more compact, lighter with even more connectivity: a must!
Thanks to more than 10 years of experience, Bosch ensures with this new motorization, a higher level of agility and dynamism when pedaling.
Autonomy.
Gain autonomy with the highest-performing Bosch PowerTube 800 battery !
The German engine manufacturer has been working on a generation of batteries, equipped with new, more efficient Li-Ion cells, which allows for even greater autonomy while saving weight.
With its sporty design, the new Purion 400 high-resolution color display allows you to have the most important information about your route at a glance!
Even further.
