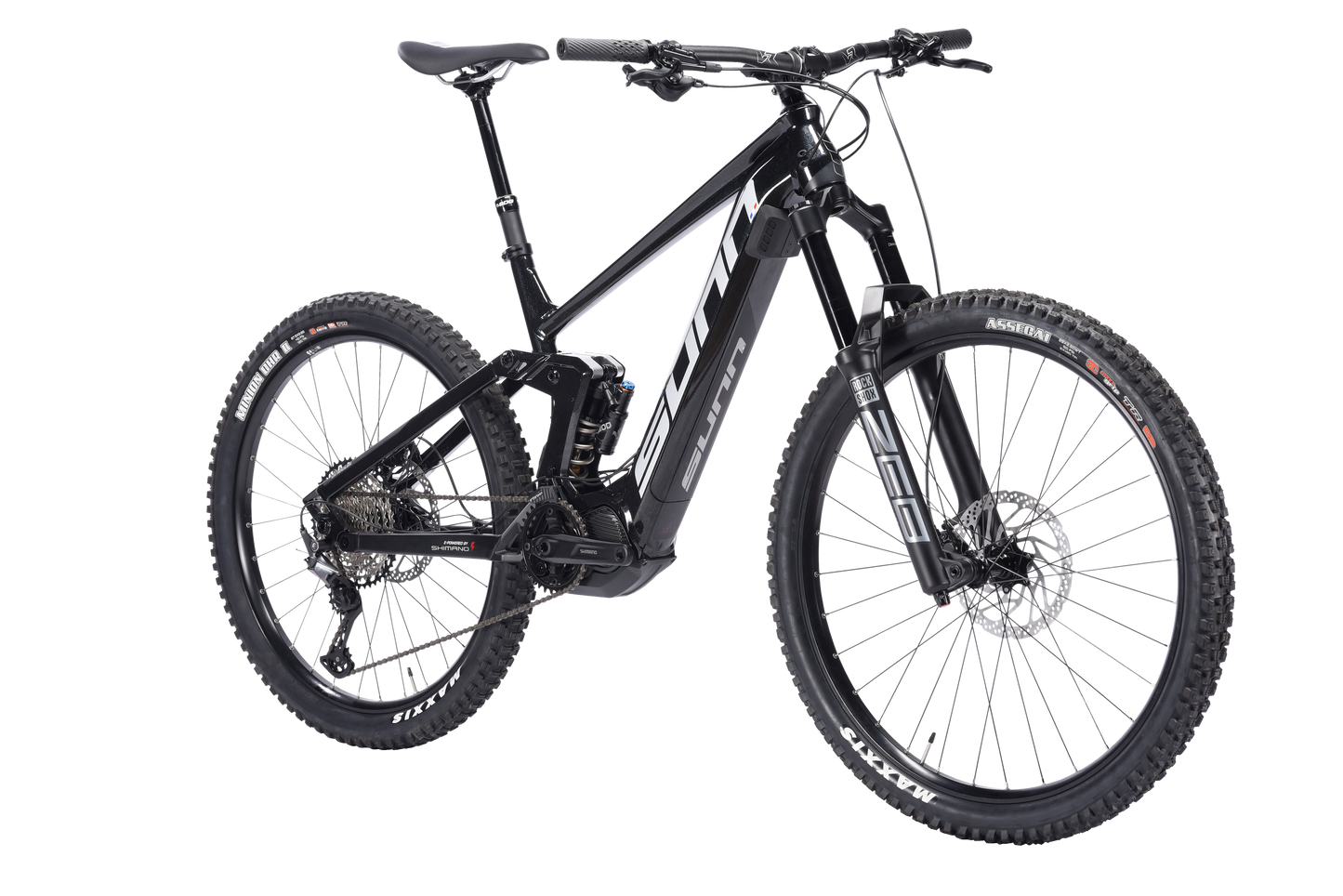

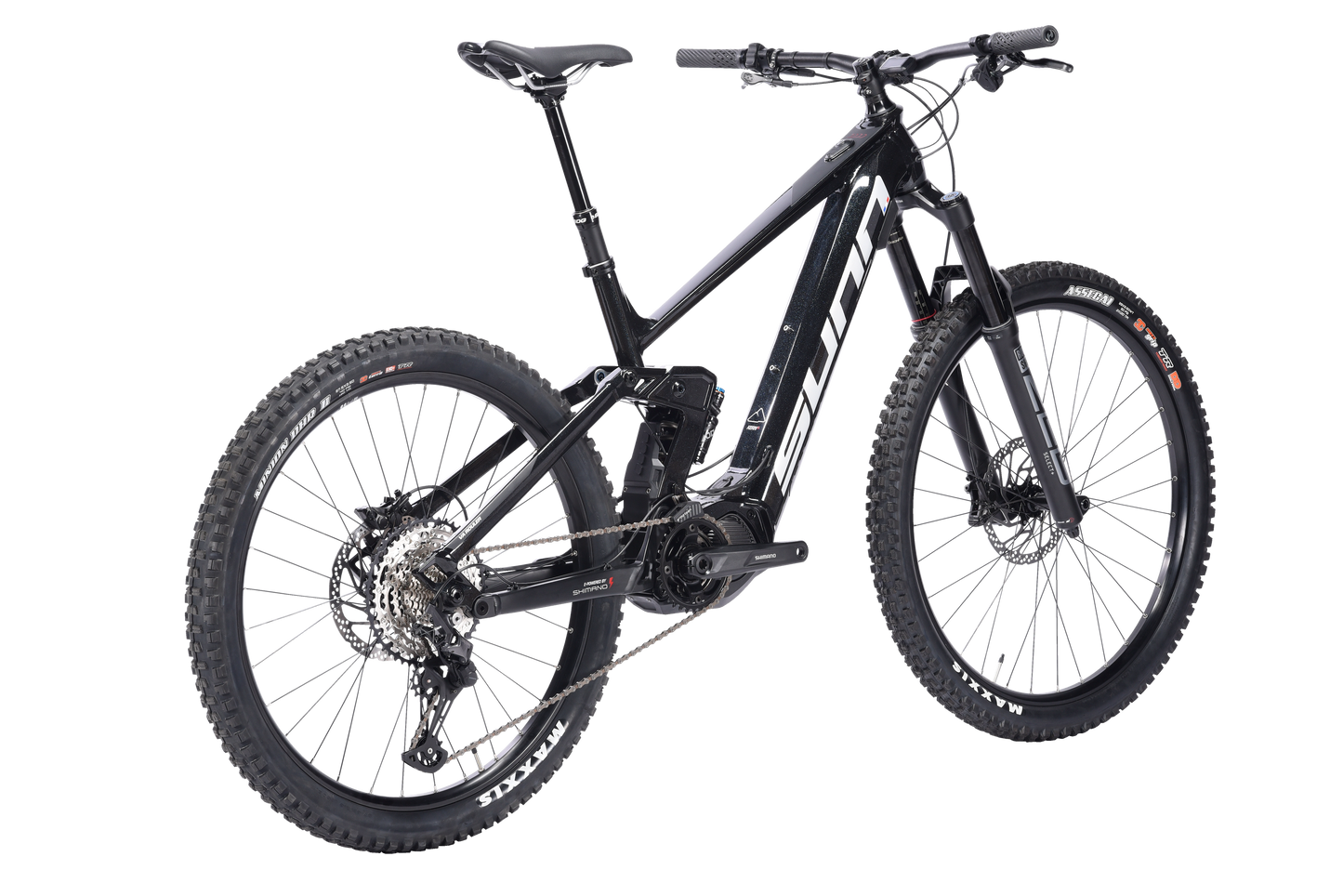

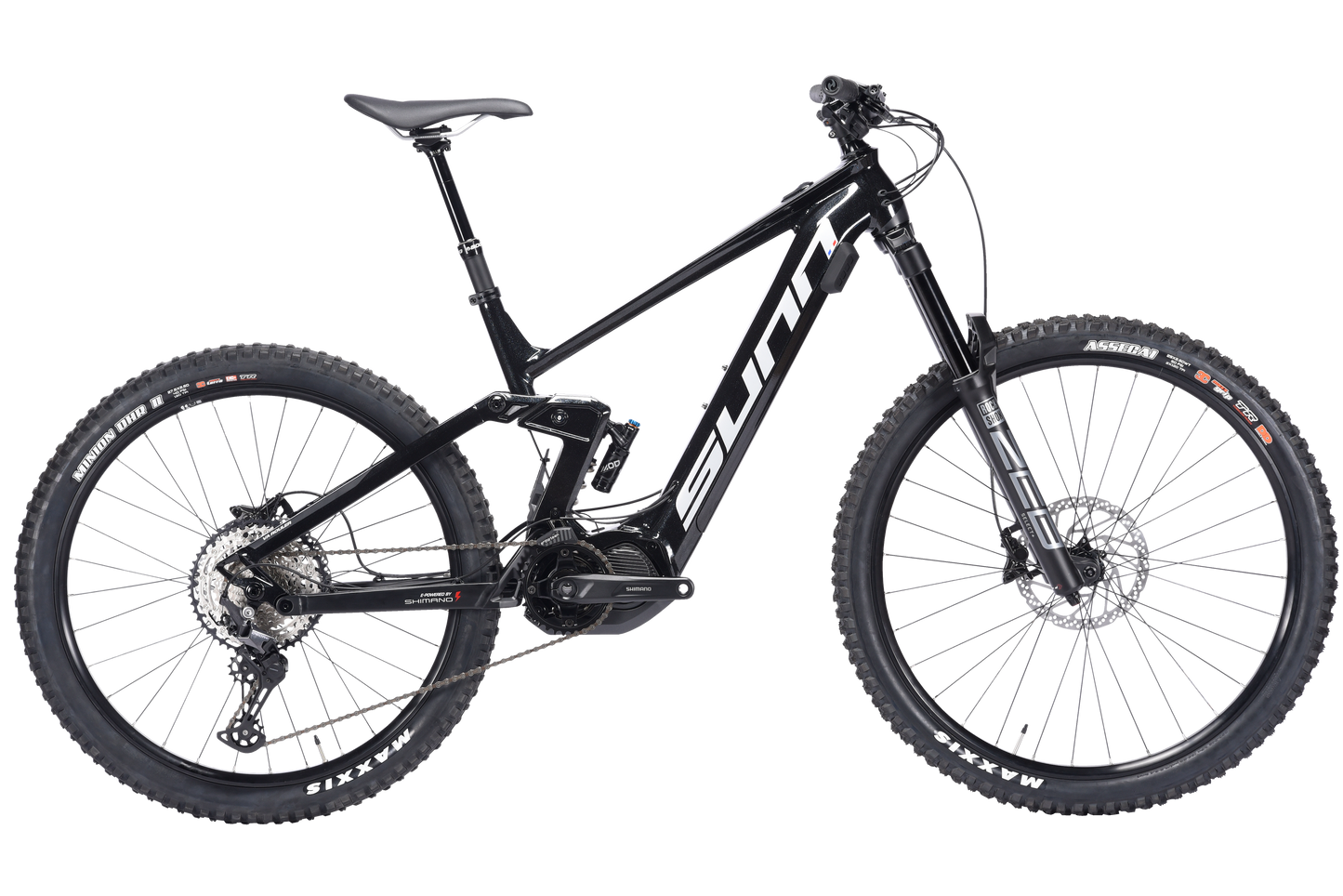

SUNN E-MTB KERN EL S1
Kern EN, the absolute weapon in E-Enduro with geometry and kinematics. With an assertive design, the Kern EN concedes significant peddling efficiency and ensures real stability even at high speed.
ELECTRIFIED & Ready!
| FRAMEWORK | Frame
KERN INTEGRATED 630Wh, 6069 EDGE TUBING BOOST, 155MM ForkROCKSHOX ZEB SELECT CHARGER RC DEBONAIR, TA, BOOST, 160MM Travel 160/155 Shock FORMULA MODEL COIL 210x55 |
| MOTOR | Engine
SHIMANO EP8 250W/85Nm Battery SHIMANO 630Wh BTE8036 |
| TRANSMISSION | Rear derailleur SHIMANO XT M8130 11s Crankset SHIMANO DEORE M600 34d Cassette SHIMANO XT LG600 11-50 Controller SHIMANO XT M8130 |
| BRAKES | Brakes
FR FORMULA CURA 4 4P 220/203 AR FORMULA CURA 2
|
| WHEELS | Wheel size
29''/27.5'' Wheels 29x2.5 front / 27.5x2.6 rear Rims MACH1 TRUCKY30 30c 32T Hub SHIMANO MT410 BOOST Tires MAXXIS ASSEGAI 29x2.50 WT (F) MINION DHR II 27.5x2.6 (R), TLR |
| COMPONENTS | Hanger VR 6061 780MM Stem EXT:CNC 45MM-0°-31.8 Saddle stem SDG TELLIS DROPPER SEATPOST 31.6MM 125MM (S) 150(M/L) Saddle SUNN VR by DDK |
| WEIGHT | Weight
23.3 |
| Kern El S1 YCSUWV certificate Shimano EP8 user manual Shimano Battery Instruction Manual |
Geometry
| SIZE | S | M | L | |
|---|---|---|---|---|
| Seat tube height | ST | 400 | 450 | 500 |
| Top tube length | TT | 590 | 610 | 630 |
| Wheelbase | WB | 1208 | 1229 | 1250 |
| Steering angle | HA | 65° | 65° | 65° |
| Seat tube angle | HER | 75° | 75° | 75° |
| Base length | R.C. | 450 | 450 | 450 |
| Bottom bracket height | BB | -10 | -10 | -10 |
| Socket height | 110 | 120 | 130 | |
| Standover | 820 | 825 | 830 | |
| Reach | 427 | 444 | 461 | |
| Stack | 611 | 620 | 629 | |
| Fork | 571 | 571 | 571 |
Sizes
SMALL - 158cm / 168cm
MEDIUM - 168cm / 178cm
LARGE - 178cm / 188cm
