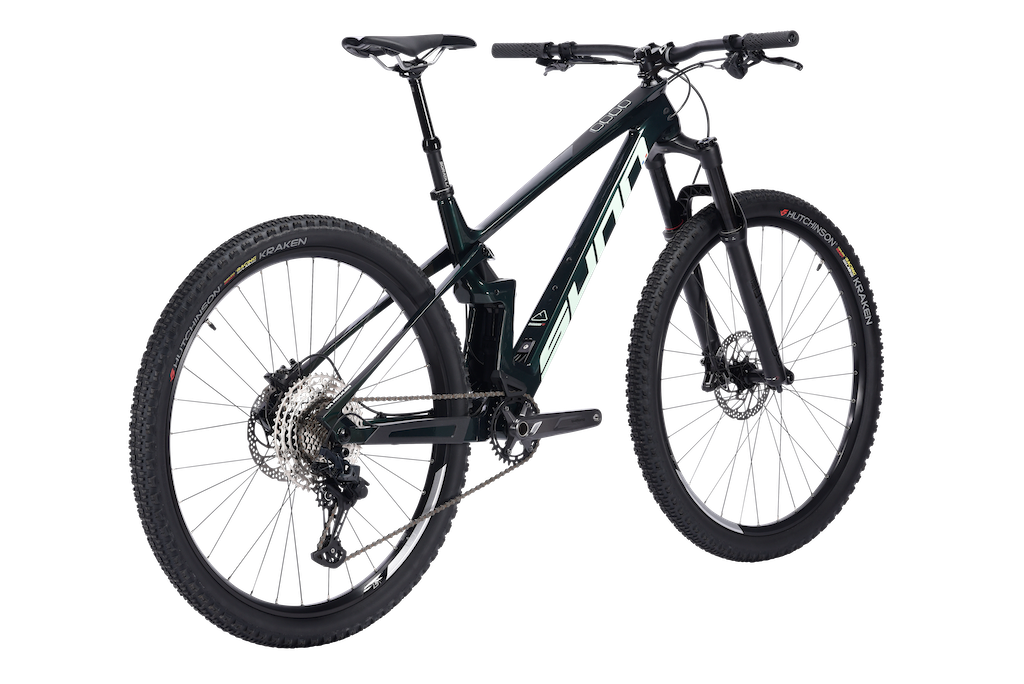

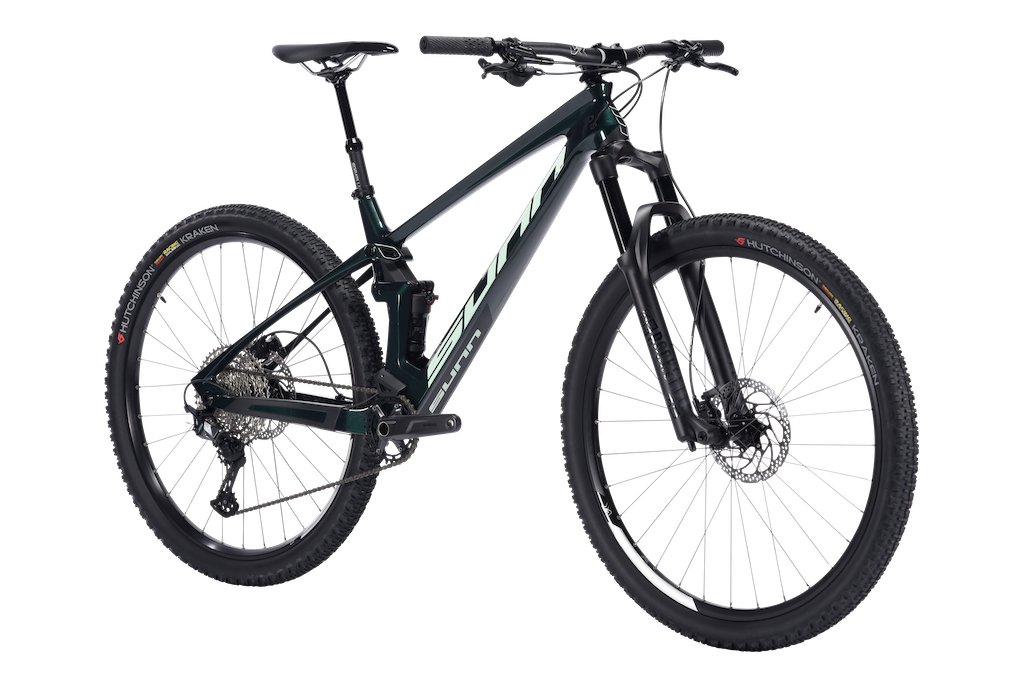

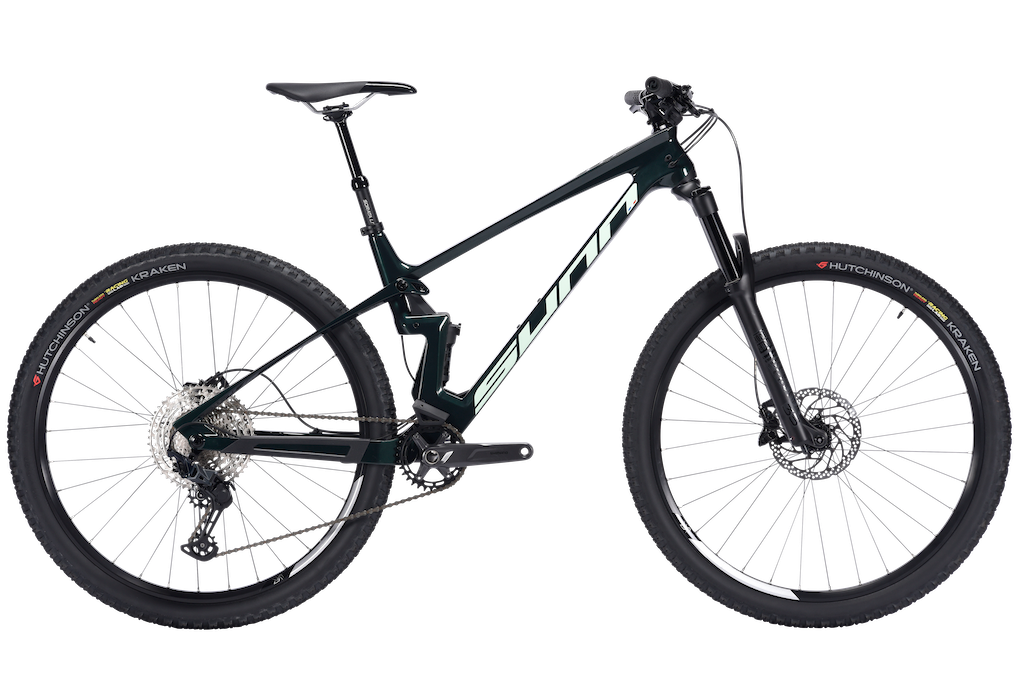

SUNN SHAMANN TR S1
The Shamann TR does not leave indifferent. Beyond its unique design, this Trail mountain bike is very efficient uphill and extremely agile downhill. Versatile, the Shamann TR is perfect for taming the most demanding and technical terrain. This bike is ready to do it all.
| FRAMEWORK | Frame
SHAMANN CARBON MONOCOQUE T800 HM TAPERED, BOOST, PF92, THRU AXLE, 115MM ForkROCKSHOX 35 GOLD RL, DEBONAIR TA, BOOST 130MM Travel 130/115 Shock ROCKSHOX DELUXE SELECT R 190x45 |
| TRANSMISSION | Rear derailleur SRAM NX EAGLE 12v Crankset SRAM X1 DUB 32T CassetteSRAM EAGLE 12v 11-50 Shifter SRAM NX EAGLE 12v |
| BRAKES | Brakes
SRAM LEVEL 180/180
|
| WHEELS | Wheel size
29'' Wheels 29x2.30 Rims MACH1 TORKX DISC 27c 32T Hub BOOST 6T Tires VITTORIA BARZO 29x2.25 TLR |
| COMPONENTS | Hanger VR 6061 760MM Stem EXT:45MM-0°-31.8 Seat Post SATORI DROPPER SEATPOST 31.6x100MM Saddle VR CR-MO by DDK |
| WEIGHT | Weight
13.65 |
| SUNN MTB instructions |
Geometry
| SIZE | S | M | L | |
|---|---|---|---|---|
| Seat tube height | ST | 400 | 450 | 500 |
| Top tube length | TT | 570 | 600 | 630 |
| Wheelbase | WB | 1132 | 1163 | 1195 |
| Steering angle | HA | 68.5° | 68.5° | 68.5° |
| Seat tube angle | HER | 73° | 73° | 73° |
| Base length | R.C. | 439 | 439 | 439 |
| Bottom bracket height | BB | -30 | -30 | -30 |
| Socket height | 100 | 110 | 120 | |
| Standover | 815 | 815 | 815 | |
| Reach | 4058 | 435 | 463 | |
| Stack | 606 | 615 | 625 | |
| Fork | 540 | 540 | 540 |
Sizes
SMALL - 158cm / 168cm
MEDIUM - 168cm / 178cm
LARGE - 178cm / 188cm
